Production lines in gear manufacturing require reliable inspection methods to ensure consistent quality. They at ZDCY have developed advanced solutions that address both on-machine probing and standalone measurement needs. Choosing the right approach can impact efficiency, accuracy, and workflow integration. Gear measurement machine technology plays a crucial role in high-precision gear production, helping facilities maintain tight tolerances and reduce rework.
On-Machine Probing for Real-Time Feedback
On-machine probing allows for immediate inspection of gears during the grinding or cutting process. By integrating a gear measuring machine directly into the production system, operators can detect deviations without transferring parts to a separate inspection station. They at ZDCY provide solutions that support in-process measurement, enabling automatic alignment, tooth finding, and indexing. This method helps reduce setup errors and shortens production cycles while offering real-time feedback on machining accuracy, which is essential for high-volume manufacturing.
Standalone Gear Measurement Machines for Precision

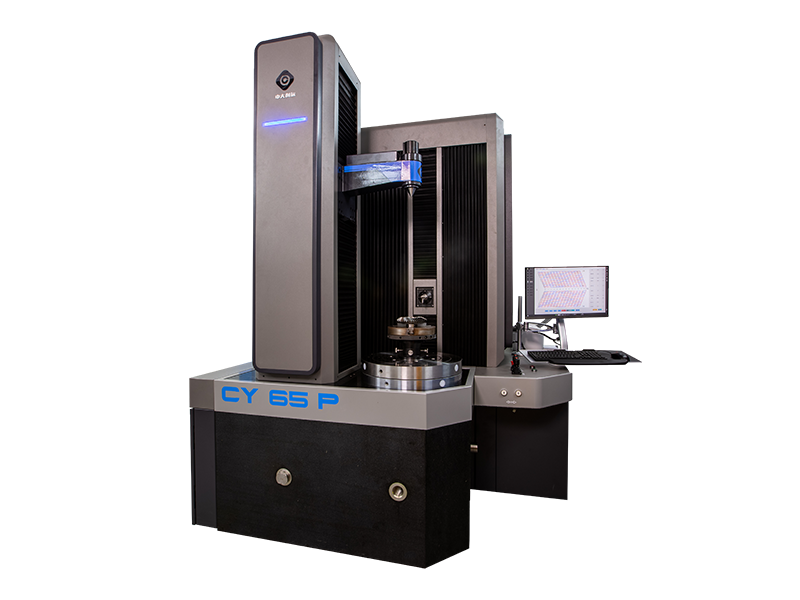

For tasks that require detailed analysis or verification of complex geometries, standalone gear measurement centers are often preferred. The CY65P gear measuring center from ZDCY can measure spiral bevel gears, straight bevel gears, involute cylindrical gears, hobs, and cutters. It features a granite base with an integrated main structure, full-face direct-drive technology, a 3D digital probe, and a reliable Windows-based software system. Repeated measurement errors for tooth profiles and directions are below 1μm, demonstrating the precision achievable with a dedicated gear measurement machine. This system is ideal for production lines that demand thorough quality assurance and traceable results.
Conclusion: Integrating Measurement for Optimal Production
Balancing on-machine probing and standalone inspection depends on the specific production goals. ZDCY offers both approaches, allowing manufacturers to combine in-process monitoring with high-precision standalone verification. Their gear measuring machine and CY65P center provide tools for maintaining tight tolerances and reducing defects. By selecting the appropriate measurement strategy, production lines can improve accuracy, enhance workflow efficiency, and ensure that every gear meets quality standards consistently.
